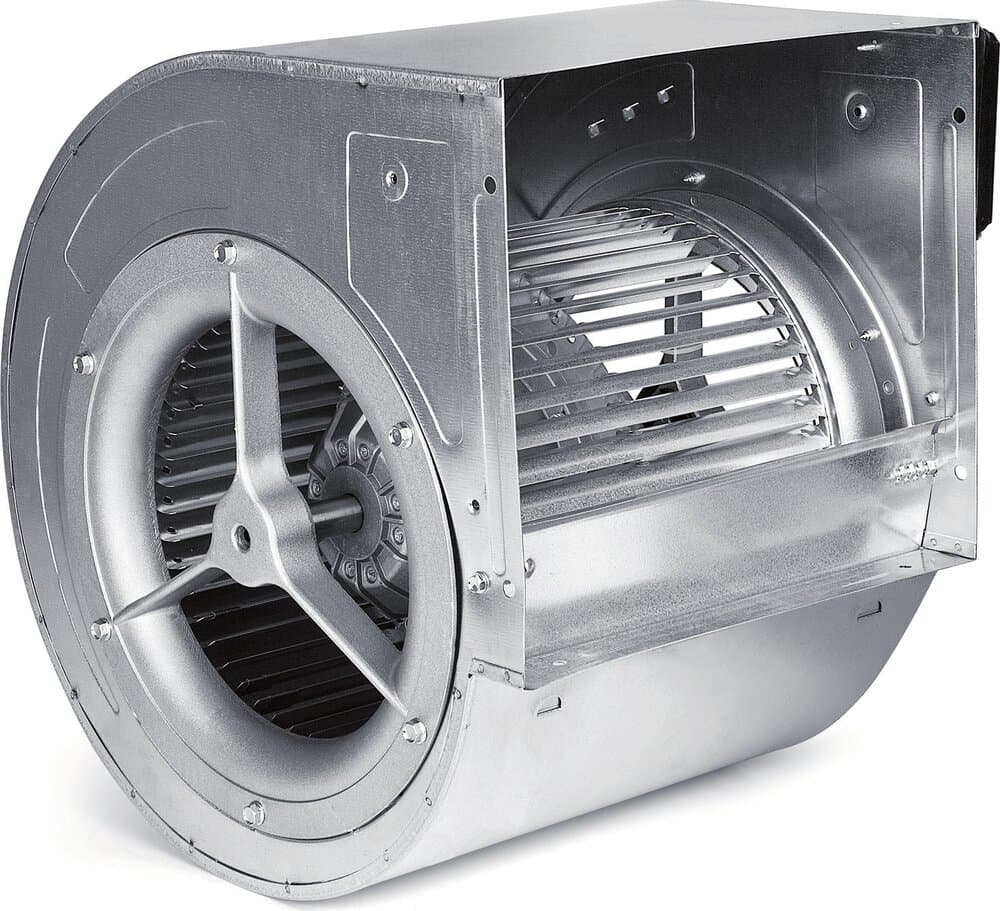

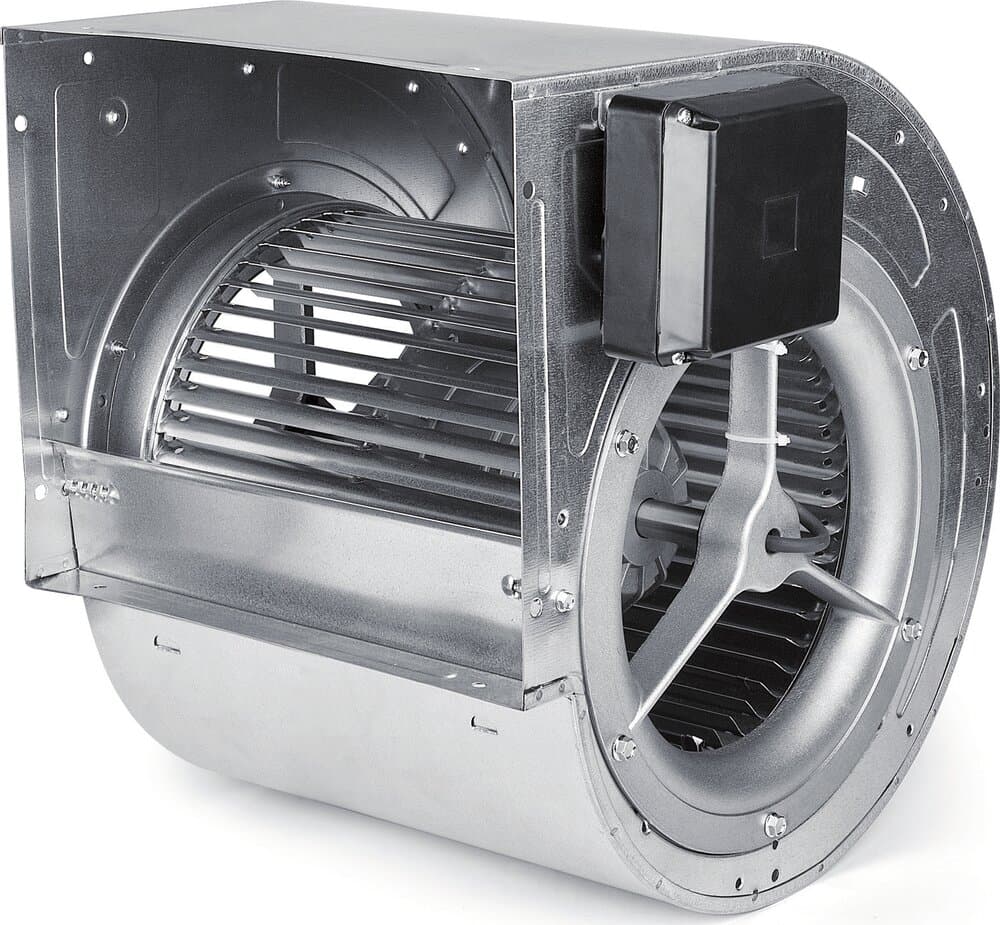

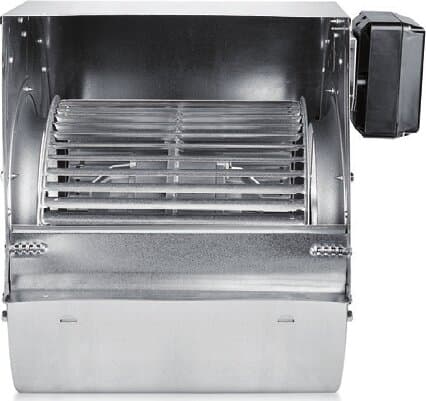

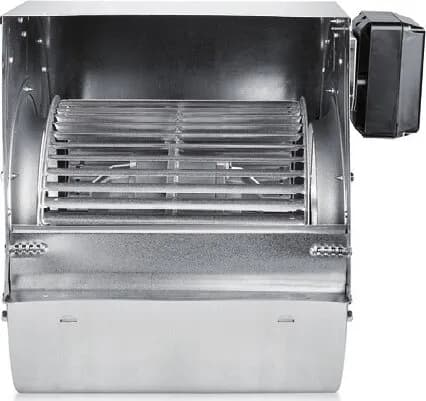

CBM-RE — centrifugalni ventilatori sa spoljnim rotorom
Šifra proizvoda: CBM-RE
Detalji
CBM-RE je serija niskopritisnih centrifugalnih ventilatora sa dvostranim usisom i direktnim pogonom, kod kojih je ugrađen motor sa spoljnim rotorom (RE — Rotor External). Kod takvog motora rotor je spolja, direktno spojen sa kolom, pa je sklop kompaktniji i pogodan za regulaciju broja obrtaja u širokom opsegu.

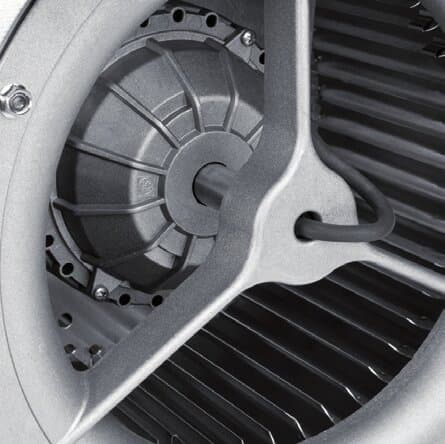

- Motor sa spoljnim rotorom — kompaktan sklop i široka regulacija obrtaja
- Napred zakrivljeno kolo od pocinkovanog lima, izbalansirano (ISO 1940)
- Jednofazne i trofazne izvedbe; trofazne pogodne za frekventni regulator
- Klasa zaštite do IP55, klasa izolacije F, termička zaštita motora
- Spoljni rotor
- Napred zakrivljeno kolo
- ISO 1940
- 1~ / 3~
- Frekventni regulator
Dokumenta
Modeli
| Model | Napajanje | Snaga (W) | Protok (m³/h) |
|---|---|---|---|
| CBM-7/7 72W 6P RE VR | 1~ 230 V | 72 | 1.440 |
| CBM-7/7 147W 4P RE VR | 1~ 230 V | 147 | 1.470 |
| CBM-7/7 300W 4P RE VR | 1~ 230 V | 300 | 2.200 |
| CBM-7/9 72W 6P RE VR | 1~ 230 V | 72 | 1.850 |
| CBM-7/9 300W 4P RE VR | 1~ 230 V | 300 | 2.530 |
| CBM-9/7 200W 6P RE VR | 1~ 230 V | 200 | 1.900 |
| CBM-9/7 245W 6P RE VR | 1~ 230 V | 245 | 2.650 |
| CBM-9/7 420W 4P RE VR | 1~ 230 V | 420 | 2.600 |
| CBM-9/9 200W 6P RE VR | 1~ 230 V | 200 | 2.760 |
| CBM-9/9 245W 6P RE VR | 1~ 230 V | 245 | 2.870 |
| CBM-9/9 300W 4P RE VR | 1~ 230 V | 300 | 2.500 |
| CBM-9/9 550W 4P RE VR | 1~ 230 V | 550 | 3.470 |
| CBM-10/8 245W 6P RE VR | 1~ 230 V | 245 | 3.490 |
| CBM-10/8 515W 6P RE VR | 1~ 230 V | 515 | 3.750 |
| CBM-10/8 550W 4P RE VR | 1~ 230 V | 550 | 2.900 |
| CBM-10/10 245W 6P RE VR | 1~ 230 V | 245 | 3.370 |
| CBM-10/10 515W 6P RE VR | 1~ 230 V | 515 | 4.090 |
| CBM-10/10 600W 4P RE VR | 1~ 230 V | 600 | 3.300 |
| CBM-12/9 515W 6P RE VR | 1~ 230 V | 515 | 4.195 |
| CBM-12/9 750W 6P RE VR | 1~ 230 V | 750 | 4.990 |
| CBM-12/12 515W 6P RE VR | 1~ 230 V | 515 | 4.540 |
| CBM-12/12 750W 6P RE VR | 1~ 230 V | 750 | 5240 |
| CBM-7/7 250W 4P T RE VR | 3~ 230/400 V | 250 | 2.320 |
| CBM-9/7 550W 4P T RE VR | 3~ 230/400 V | 550 | 3.350 |
| CBM-9/9 245W 6P T RE VR | 3~ 230/400 V | 245 | 3.330 |
| CBM-9/9 550W 4P T RE VR | 3~ 230/400 V | 550 | 4.830 |
| CBM-10/8 245W 6P T RE VR | 3~ 230/400 V | 245 | 3.470 |
| CBM-10/8 350W 6P T RE VR | 3~ 230/400 V | 350 | 4.330 |
| CBM-10/8 550W 4P T RE VR | 3~ 230/400 V | 550 | 4.230 |
| CBM-10/10 245W 6P T RE VR | 3~ 230/400 V | 245 | 3.920 |
| CBM-10/10 350W 6P T RE VR | 3~ 230/400 V | 350 | 5.000 |
| CBM-10/10 550W 4P T RE VR | 3~ 230/400 V | 550 | 4.010 |
| CBM-10/10 750W 4P T RE VR | 3~ 230/400 V | 750 | 5.880 |
| CBM-12/12 550W 6P T RE VR | 3~ 230/400 V | 550 | 6.490 |
| CBM-12/12 750W 6P T RE VR | 3~ 230/400 V | 750 | 7480 |
| CBM-12/12 1100W 6P T RE VR | 3~ 230/400 V | 1100 | 7.410 |
| CBM-15/15 2200W 6P T RE VR K | 3~ 230/400 V | 2200 | 11.650 |
